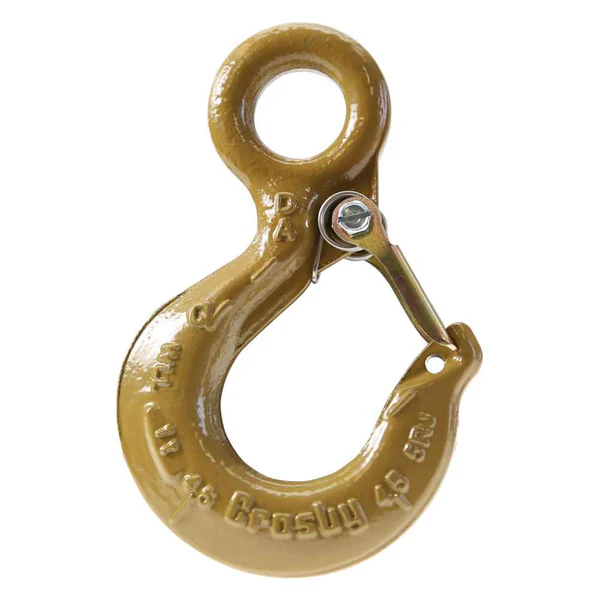

Crosby L-320AN Alloy Eye Hooks (color brown)

Product details

• Eye hooks are load rated (marked with the Working Load Limit).
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
• Forged – Quenched & Tempered.

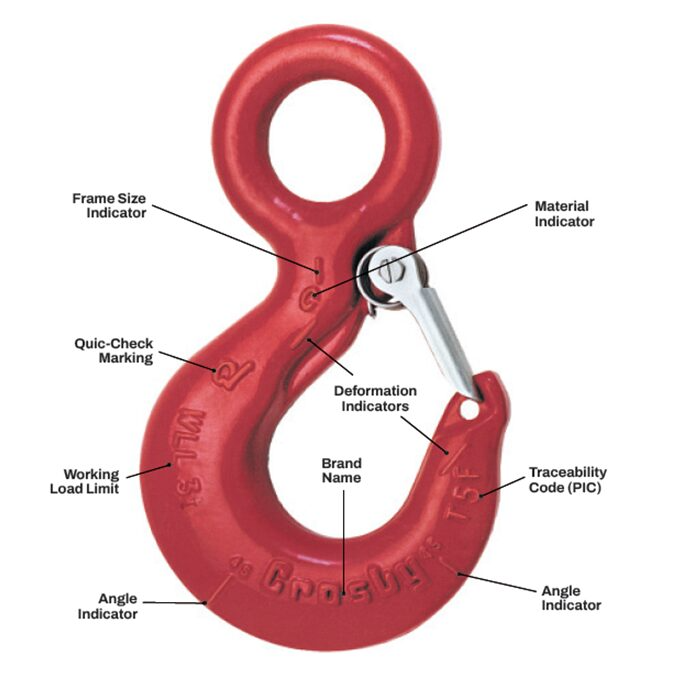

• Hooks incorporate QUIC-CHECK® deformation and angle indicators.



All carbon hooks have a 5:1 Design Factor. Alloy eye hooks 1t through 22t have a 5:1 Design Factor. Alloy eye hooks 30t through 60t have a 4.5:1 Design Factor. For 3/4t carbon through 22t alloy eye hooks, Proof Load is 2.5 times Working Load Limit. For 20t carbon through 60t alloy eye hooks, Proof Load is 2 times Working Load Limit.

*Deformation indicators. †3/4t carbon though 22t alloy dimensions shown are for S-4320 Latch Kits. Dimensions for "O" frame size and larger are for PL Latch Kits. ††Dimensions are for PL-N latch kits.
