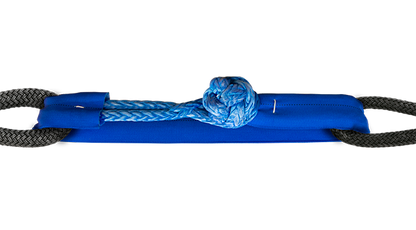

Samson Link-It Plus Soft Shackles
Samson Link-It Plus Soft Shackles
SKU:SLP2.0T
Couldn't load pickup availability
- Description
- Reviews
Description
FULL PULL ROPE / SAMSON LINK-IT PLUS
Lightweight connections for demanding work

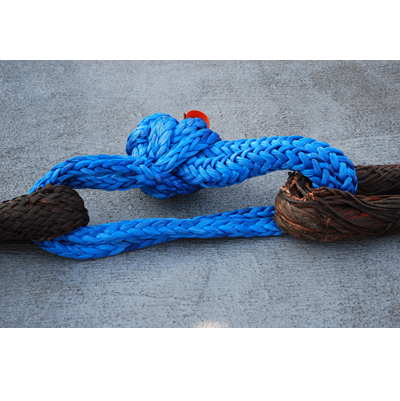

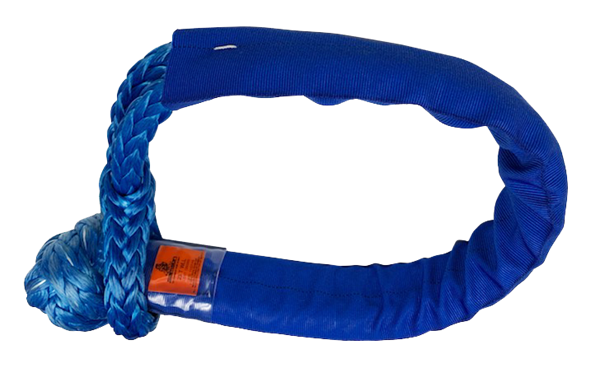

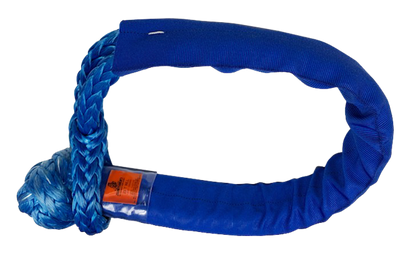

Samson Link-It Plus™ soft shackles combine AmSteel®-Blue 12-strand HMPE rope with a button-knot closure for a strong, compact connection. Flexible and easy to attach or remove, they offer an alternative to steel shackles that will not rust or corrode. Full chafe protection and an attached rating tag come included.
Lightweight & compact
High-strength HMPE construction makes handling easier and keeps connection lengths short.

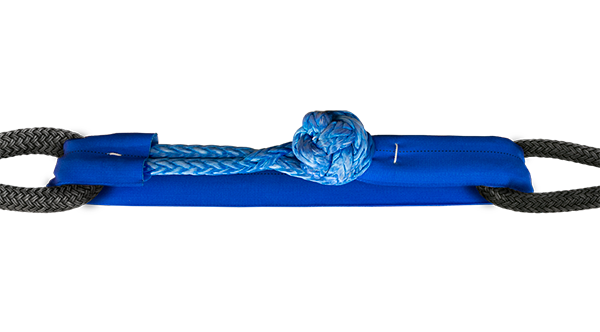

Full chafe protection
A protective sleeve helps shield the load-bearing rope at contact points.
Rating information included
An attached identification tag carries important rating and use information.
Not approved for lifting. Samson does not currently approve Link-It Plus for lifting applications, including overhead lifting. For lifting applications, see Samson Link-It Max and follow its published working load limits and installation instructions.

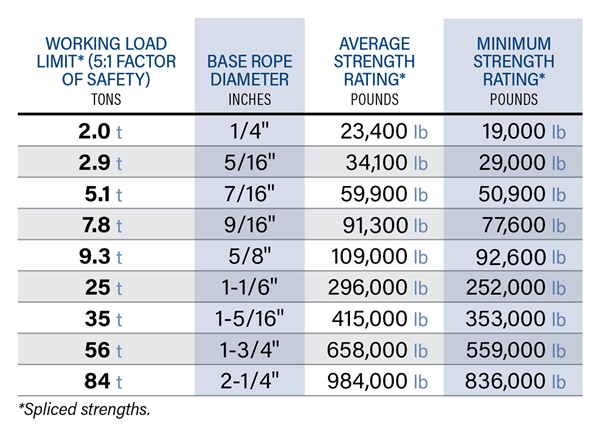

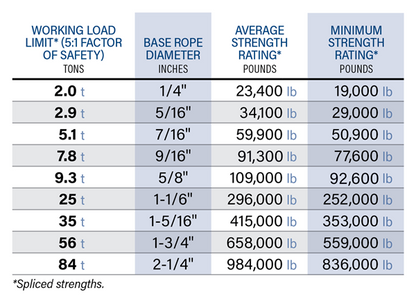

Compare ratings & dimensions
The chart below follows Samson’s published Link-It Plus Soft Shackle specifications. Confirm the rating on the individual product tag and check availability before ordering.
On a phone, swipe the chart sideways to see every column.
| WLL at 5:1* (tons) |
Base rope diameter (in.) |
Average strength rating** (lb) |
Minimum strength rating** (lb) |
Knot diameter† (in.) |
Minimum bend diameter (in.) |
|---|---|---|---|---|---|
| 1.9 | 1/4 | 23,100 | 19,700 | 1.2 | 0.4 |
| 2.8 | 5/16 | 34,000 | 28,900 | 1.5 | 0.5 |
| 5.0 | 7/16 | 60,900 | 51,700 | 2.2 | 0.7 |
| 7.7 | 9/16 | 94,000 | 79,900 | 2.9 | 0.8 |
| 9.2 | 5/8 | 113,000 | 95,900 | 3.2 | 0.9 |
| 24 | 1-1/16 | 282,000 | 240,000 | 5.6 | 1.6 |
| 35 | 1-5/16 | 407,000 | 346,000 | 7.0 | 2.0 |
| 57 | 1-3/4 | 669,000 | 569,000 | 9.4 | 2.6 |
| 88 | 2-1/4 | 1,033,000 | 878,000 | 12.2 | 3.4 |
*Working load limits use a 5:1 safety factor. **Average and minimum strength ratings are spliced strengths. †Knot diameter is measured at reference load. Specifications apply only to Samson-manufactured Link-It Plus soft shackles. Follow the product tag for rating and use information.
Connect correctly. Inspect before and after use.
- Check connection fit against the listed minimum bend diameter. Follow Samson’s single-pass installation sequence, position the button knot between the bearing points and tighten the eye by hand.
- Inspect the rope, eye, button knot and lock stitching. Check beneath worn chafe protection for damage to the load-bearing rope.
- Retire a shackle if the knot shows a sinking crown or rising walls. Use the photos in Samson’s inspection guide to recognize these changes.
- Keep a record of loading and use. Contact Samson for guidance if the rope’s condition or suitability is uncertain.
Read the complete installation instructions and Inspection & Retirement Guide before use. This summary does not replace the manufacturer’s instructions.
Product resources
- Link-It Plus product sheet (PDF, July 2026)
- Link-It Plus single-pass installation instructions (PDF)
- Link-It & Link-It Plus Inspection & Retirement Guide (PDF)
- Samson Link-It Plus product information
Questions about availability or connection fit? Contact Full Pull Rope.
