FULL PULL ROPE / WEB SLING SHACKLES

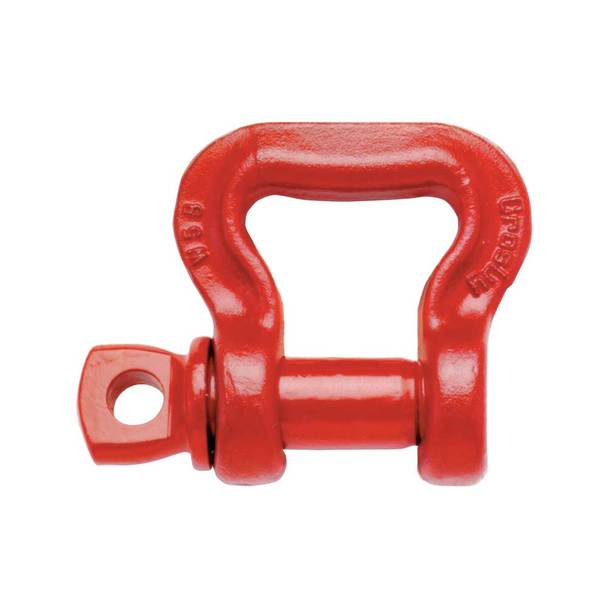

Crosby S-281 screw pin web sling shackles
Connect synthetic web slings and roundslings to pad eyes, eyebolts and lifting lugs with Crosby S-281 Sling Saver® shackles. Choose from the two roundsling-size options offered here: No. 1 & 2 with a 6,500 lb working load limit, or No. 3 with a 9,000 lb working load limit. Web sling compatibility is listed separately below.
Made for synthetic slings
A sling-specific bow connects the sling eye to common lifting attachment points. Match both the webbing width and the eye width to the selected shackle.
Crosby Red Pin®
All-alloy construction with a removable screw pin. Ear spread and pin dimensions match conventional Crosby shackles for connection to compatible hardware.
Roundsling options & web sling compatibility
| Roundsling size (option number) |
Web sling width (inches) |
Web sling eye width (inches) |
WLL lb / U.S. tons |
WLL metric tonnes |
Crosby stock no. |
|---|---|---|---|---|---|
| No. 1 & 2 | 2" | 2" | 6,500 lb 3.25 U.S. tons |
2.95 t | 1021048 |
| No. 3 | 3" | 1.5" tapered | 9,000 lb 4.5 U.S. tons |
4.08 t | 1021057 |
Roundsling sizes No. 1 & 2 and No. 3 are Crosby size designations, not inch measurements. The web sling and eye widths above follow Crosby’s imperial specification table. U.S. tons are 2,000 lb; metric tonnes are 1,000 kg. Metric ratings shown are Crosby’s published values.
Check the sling eye before ordering
For web slings, Crosby’s imperial table specifies Type III eye-and-eye, Class 7, 2-ply construction. The No. 1 & 2 shackle is listed for a 2-inch-wide web sling with a 2-inch eye. The No. 3 shackle is listed for a 3-inch-wide web sling with a tapered 1.5-inch eye. Confirm the sling manufacturer’s compatibility requirements and attachment-point dimensions before selecting a shackle.
Crosby S-281 features
- All-alloy construction with a 5:1 design factor.
- Forged-in Crosby name, working load limit and Product Identification Code (PIC) for material traceability.
- Crosby states that the S-281 meets or exceeds ASME B30.26 requirements.
- Crosby Sling Saver hardware meets WSTDA-RS1 requirements for minimum stock diameter or thickness and effective contact width.
The design factor does not increase the working load limit.
Dimensions & fit
All dimensions below are in inches. The letters match the S-281 lettered drawing in the product gallery. Dimensions and weights are from Crosby’s current product specifications.

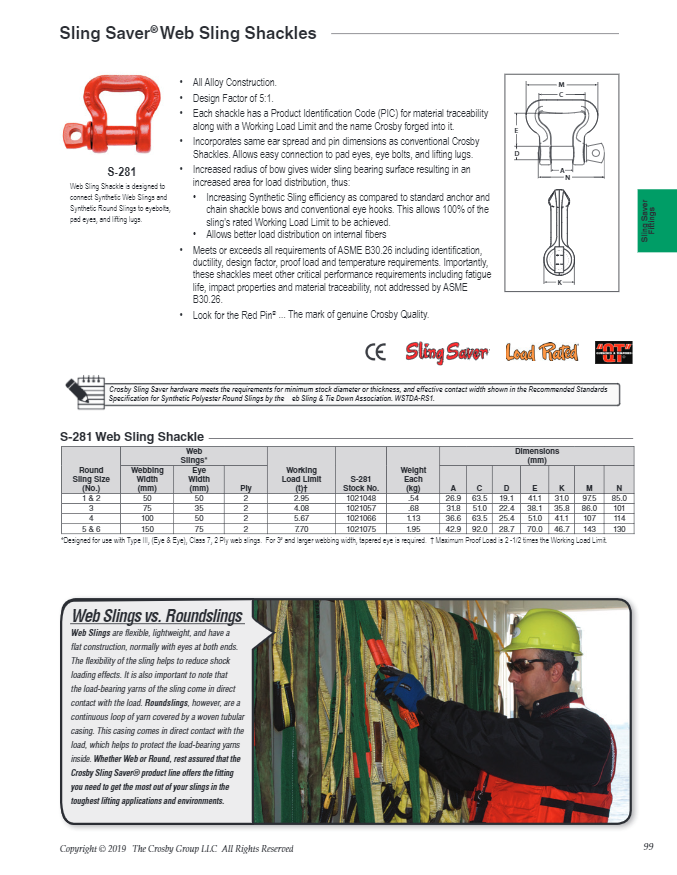

Open the original catalog image
| Crosby stock no. | A | C | D | E | K | M | N | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 1021048 | 1.06 | 2.50 | 0.75 | 1.62 | 1.22 | 3.84 | 3.34 | 1.2 |
| 1021057 | 1.25 | 2.00 | 0.88 | 1.50 | 1.41 | 3.38 | 3.97 | 1.5 |
Use the drawing to check pin fit and clearances. Webbing width is not the shackle pin diameter.
Choose the connection for the job
Crosby recommends screw pin shackles for temporary, pick-and-place connections and bolt-type shackles for permanent or long-term installations. Fully engage and tighten the pin before each lift, and prevent a moving line from turning it.
Avoid folding, bunching or pinching the sling eye. Keep the load centered, account for any required side-loading reductions, and follow the sling and shackle manufacturers’ instructions. Never exceed the applicable working load limit of any component.
Crosby specifications & resources
Need help choosing a web sling shackle?
Email sales@fullpullrope.com with your sling type, webbing and eye widths, required WLL, connection dimensions and intended application. Include any testing or documentation requirements before ordering.
