Samson Cor-Gard Chafe Sleeve (per foot)
Samson Cor-Gard Chafe Sleeve (per foot)
SKU:CORGARD-2
Couldn't load pickup availability
- Description
- Reviews
Description
FULL PULL ROPE / SAMSON COR-GARD™
Chafe protection where your rope needs it.

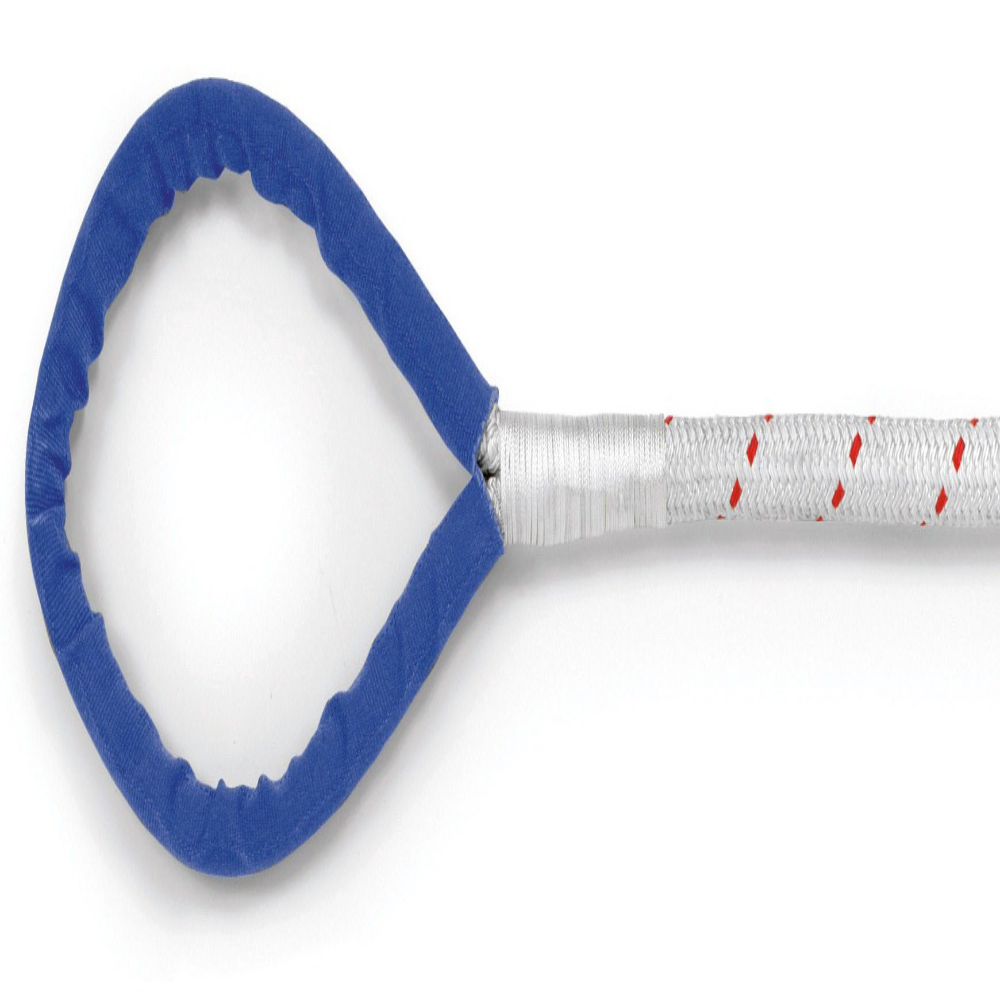

Samson Cor-Gard™ is a woven tubular sleeve made from 100% industrial nylon. Use it to add abrasion protection to rope eyes or selected sections of working line. Sold by the foot in eight sleeve sizes.
Industrial nylon
Durable woven construction for protection against chafe and abrasion.
For rope eyes & body
Can be installed on working-line eyes or along the rope itself.
Order by the foot
Choose your sleeve size and enter the number of feet you need.
How to order
- Match your rope diameter to the size chart below.
- Select the matching number in the Size selector above.
- Enter your required footage. Quantity 1 = 1 foot. Quantity 10 = 10 feet.
Use the selector for current pricing and availability. Shipping charges are calculated at checkout. Contact us before ordering if you need a specific cutting arrangement.
Cor-Gard size & rope fit
2, 3, 4, 5, 6, 8, 10 and 12 are Samson sleeve size designations. Use the rope-diameter ranges to choose your size. For example, Size 2 fits rope from 3/4" to 1" in diameter.
On small screens, scroll the table sideways if needed.
| Sleeve size | Fits rope diameter (in.) |
Fits rope diameter (mm) |
|---|---|---|
| 2 | 3/4" – 1" | 18 – 24 |
| 3 | 1-1/16" – 1-1/2" | 26 – 36 |
| 4 | 1-9/16" – 2-1/8" | 38 – 52 |
| 5 | 2-3/16" – 2-5/8" | 54 – 64 |
| 6 | 2-11/16" – 3-1/4" | 66 – 80 |
| 8 | 3-3/8" – 4" | 82 – 96 |
| 10 | 4-1/16" – 4-5/8" | 98 – 112 |
| 12 | 4-11/16" – 5-1/4" | 114 – 128 |
Inch and metric ranges are shown as published by Samson. Confirm sizing and installation for spliced sections, thimbles or other end fittings before ordering.
Source: Samson Cor-Gard product sheet (PDF), August 2026 revision. Specifications checked October 12, 2026.
Selection & care
Confirm that the sleeve, rope and hardware suit your application. Inspect the sleeve and the rope beneath it before use. Avoid sharp edges and shock loading, and follow Samson’s rope use, inspection and retirement guidance.
Product resources
Need help choosing a sleeve?
Email sales@fullpullrope.com with your rope diameter, required footage and where the sleeve will be used. Include any existing splices, thimbles or end fittings.
