FULL PULL ROPE / SAMSON LINK-IT MAX
Lightweight connections for heavy lifting

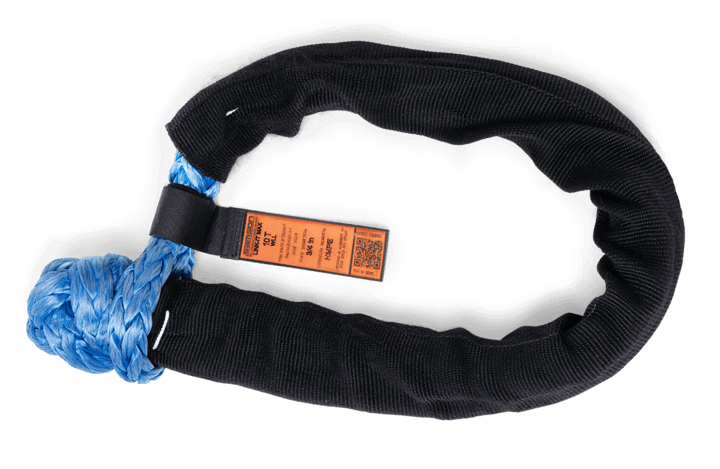

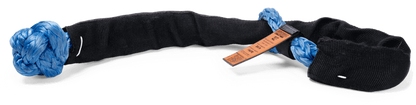

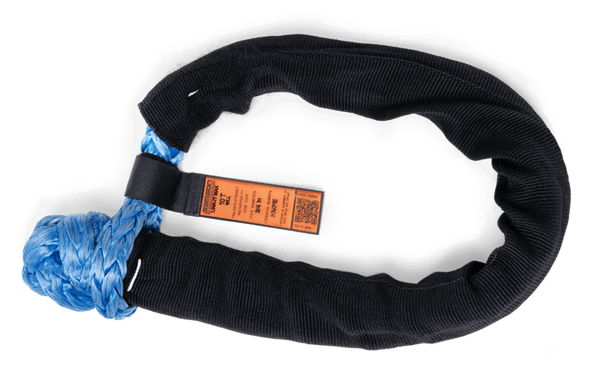

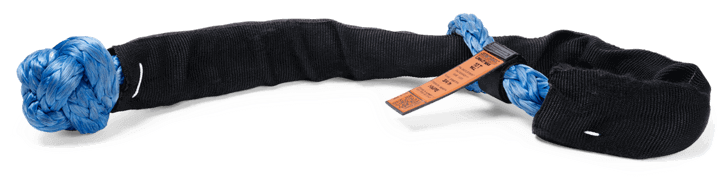

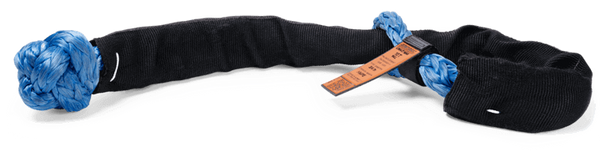

Samson Link-It Max™ lifting soft shackles bring flexible, corrosion-resistant HMPE construction to lifting-sling connections. The button-knot design combines AmSteel®-Blue rope, a durable chafe jacket and a secondary locking tag. Choose from the 18 listed sizes below to compare working load limits, connection dimensions and unit weights.
Made for lifting
AmSteel®-Blue 12-strand HMPE rope with a button-knot closure and protective chafe jacket.
Secondary locking tag
A hook-and-loop tag secures the closed eye and provides a visible closure check.
Tagged & proof-loaded
Each unit carries rating and identification information and is proof-loaded by Samson to twice its WLL.
Compare ratings & dimensions
This chart covers the sizes offered in this page’s selector. A 5T option corresponds to Samson’s published 5-ton WLL, and so on. Ratings use Samson’s 5:1 design factor and the “tons” units in its imperial chart. Refer to the unit’s tag when selecting for a lift. Scroll sideways on smaller screens to see every column.
| WLL at 5:1 (tons) |
Closed overall length (in.) |
Base rope diameter (in.) |
Minimum bend diameter (in.) |
Knot diameter* (in.) |
Effective width large side (in.) |
Effective width small side (in.) |
Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 5 | 10 | 7/16 | 0.7 | 2.2 | 1.4 | 0.88 | 0.40 |
| 10 | 17 | 3/4 | 1.1 | 3.9 | 2.4 | 1.5 | 2.0 |
| 15 | 19 | 7/8 | 1.3 | 4.6 | 2.8 | 1.8 | 3.4 |
| 20 | 22 | 1 | 1.5 | 5.3 | 3.2 | 2.0 | 4.3 |
| 25 | 25 | 1-1/8 | 1.7 | 6.0 | 3.6 | 2.3 | 7.2 |
| 30 | 28 | 1-1/4 | 1.9 | 6.7 | 4.0 | 2.5 | 9.1 |
| 35 | 30 | 1-3/8 | 2.1 | 7.4 | 4.4 | 2.8 | 12.3 |
| 40 | 33 | 1-1/2 | 2.3 | 8.0 | 4.8 | 3.0 | 15.4 |
| 45 | 34 | 1-9/16 | 2.3 | 8.4 | 5.0 | 3.1 | 17.9 |
| 50 | 37 | 1-11/16 | 2.5 | 9.1 | 5.4 | 3.4 | 23.8 |
| 55 | 39 | 1-3/4 | 2.6 | 9.4 | 5.6 | 3.5 | 27.5 |
| 70 | 44 | 2 | 3.0 | 10.8 | 6.4 | 4.0 | 34.4 |
| 75 | 47 | 2-1/8 | 3.2 | 11.5 | 6.8 | 4.3 | 46.2 |
| 85 | 50 | 2-1/4 | 3.4 | 12.2 | 7.2 | 4.5 | 52.2 |
| 105 | 55 | 2-1/2 | 3.8 | 13.5 | 8.0 | 5.0 | 73.7 |
| 110 | 58 | 2-5/8 | 3.9 | 14.2 | 8.4 | 5.3 | 87.5 |
| 120 | 61 | 2-3/4 | 4.1 | 14.9 | 8.8 | 5.5 | 102.8 |
| 140 | 66 | 3 | 4.5 | 16.3 | 9.6 | 6.0 | 123.1 |
Length is the overall shackle length when closed. *Knot diameter is measured at reference load. Specifications apply to Samson-manufactured Link-It Max units. Samson describes the design as aligned with the principles of ASME B30.26 and B30.9-4.
Plan the connection. Inspect before every use.
- Stay within the tagged WLL. Use smooth, rounded connection surfaces that meet the listed minimum bend diameter. Do not shock-load.
- Connect only two elements, one at each end, along a straight load axis. Use a separate Link-It Max for each leg of a bridle; never substitute it for a master link. Account for sling-angle reductions.
- Follow Samson’s closure sequence. Do not pull the lock-stitched leg. Secure the locking tag near the knot, between bearing points, and keep chafe protection over both contact surfaces.
- Inspect the tag, closure, eye, rope core, jacket, twist and UV condition. Retire units with unreadable or missing tags, damaged cores or a closure that will not adhere after cleaning. Only Samson-qualified distributors should make repairs.
- Ask Samson about temperatures above 150°F / 65.5°C, chemically active conditions, dynamic or vibrational loading, or prolonged loading.
Read the complete Use & Retirement Guide before use. When condition is uncertain, retire the unit. This summary does not replace application-specific training or a qualified lift plan.
Samson installation & inspection video
Review Samson’s Link-It Max demonstration alongside the written guide.
Open the Samson video in a new tab
Product resources
- Link-It Max product sheet (PDF)
- Link-It Max Use & Retirement Guide (PDF)
- Samson Link-It Max product information
Questions about sizes or connection fit? Contact Full Pull Rope.
